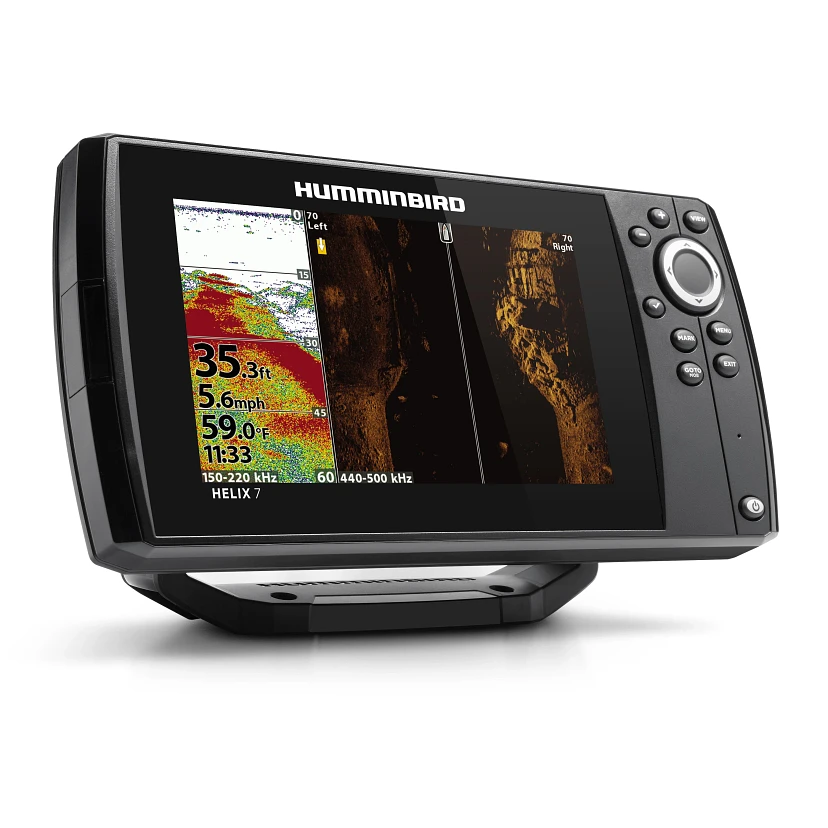

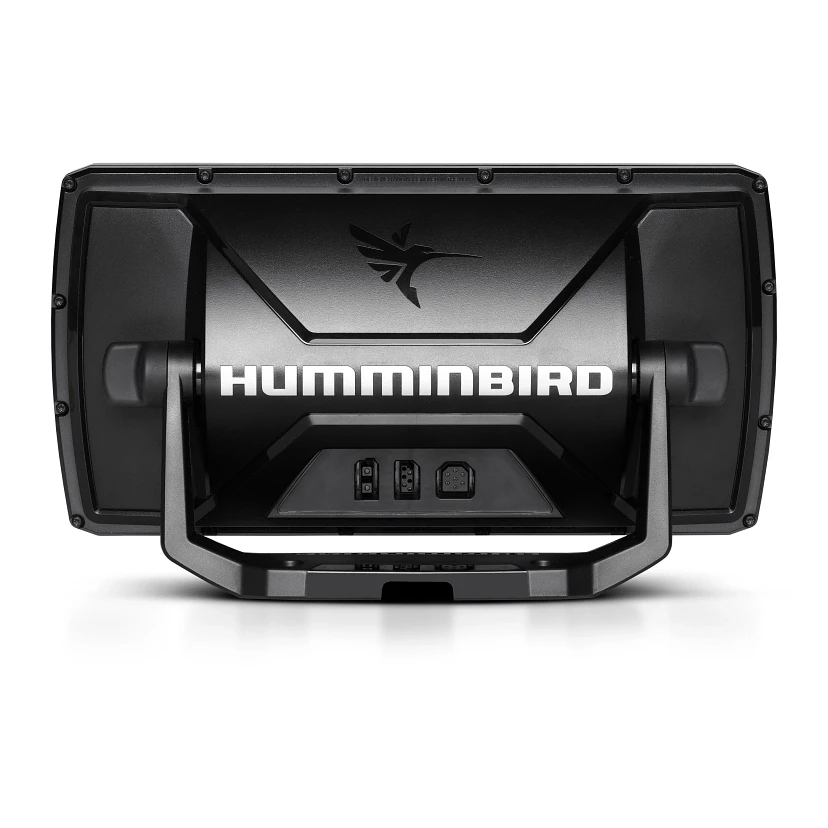

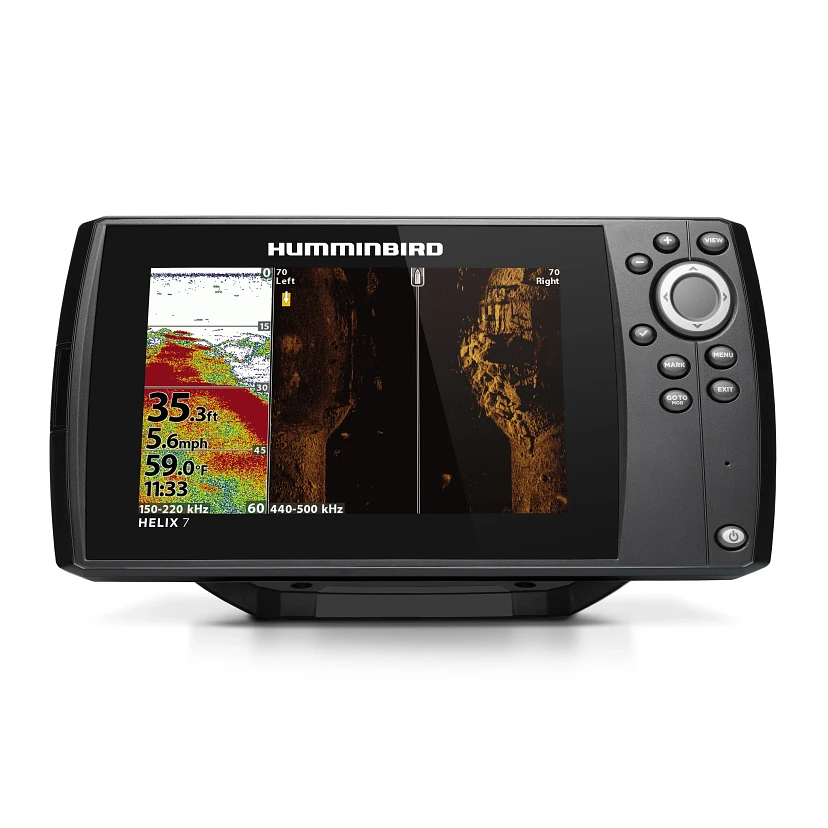

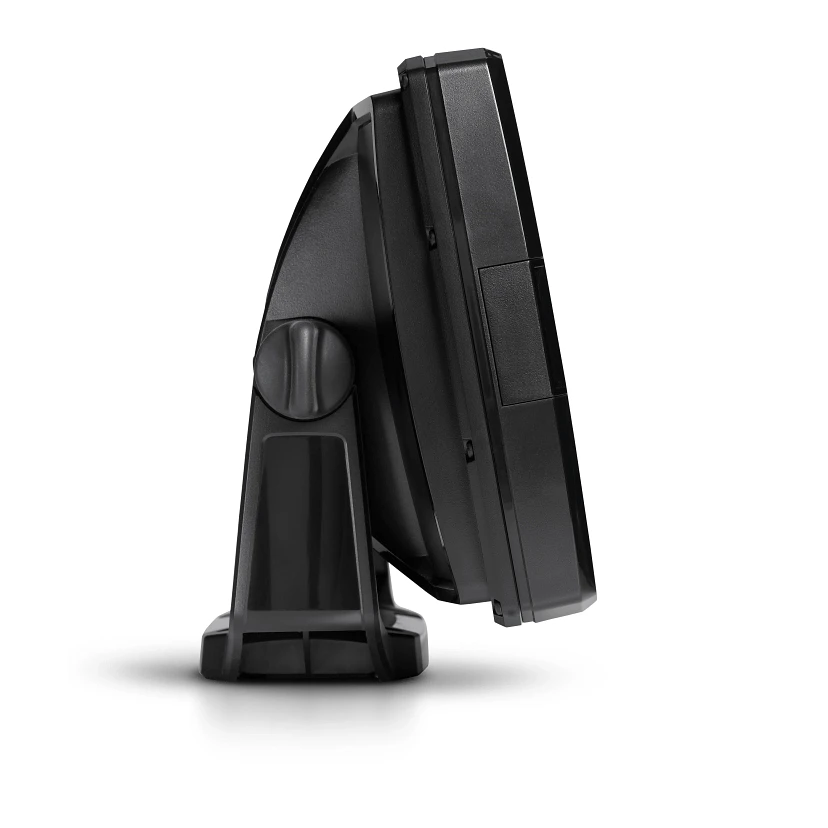

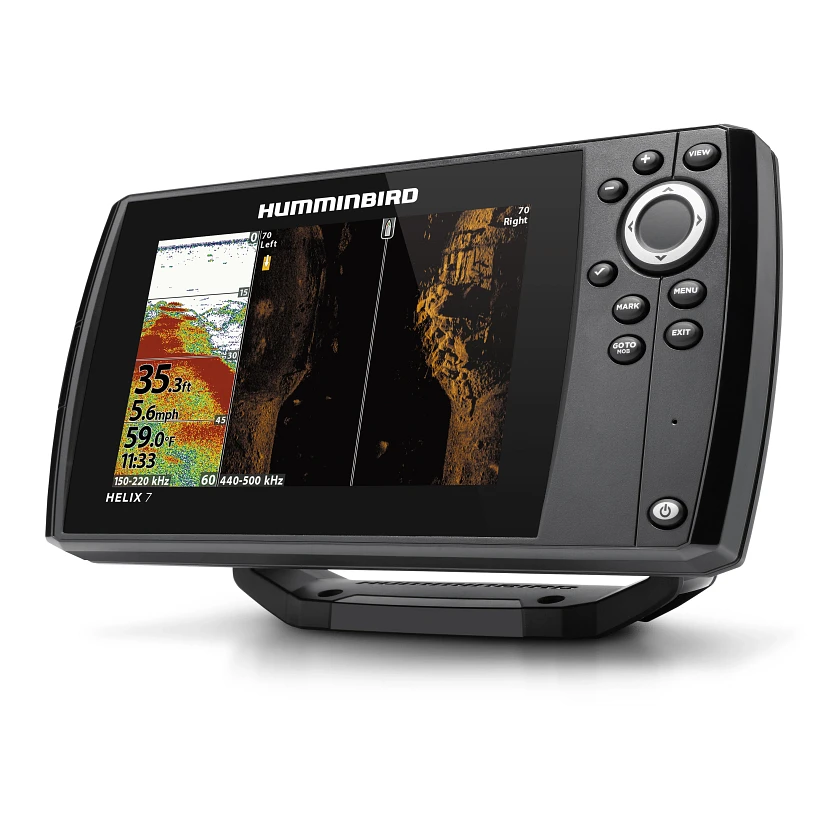

HELIX 7 CHIRP SI GPS G4

The HELIX 7 SI GPS G4 is equipped with CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap, HELIX 7 SI GPS G4 provides a high-definition 7" display for clear views and multiple pre-loaded split screen options to optimize your fishing experience.

Master HELIX with one touch. Pre-loaded views and user-friendly menu system. Reliable operation in any conditions with softkey controls. Clear view beneath your boat with CHIRP Down Imaging and Digital Sonar processing. Simple and easy fish finding.
Precision GPS and CHIRP sonar technology offer dual search modes for precise fish targeting and detailed underwater mapping. With an enhanced base map and coverage of over 10,000 lakes and coastal areas, you can confidently navigate and fish any waterway.
Compatible with Humminbird's premium chart options and provides real-time mapping capabilities with the included AutoChart Live feature. Includes control head, transducer, power cable, mounting bracket, and hardware with 1-year warranty.

Model	HELIX 7 SI GPS G4
Product Code	411920-1
Series	HELIX
UPC	0082324058288
Display Size - Diagonal	7 in
Display Pixel Matrix	1024H x 600V
Transducer Included	XNT 9 HW SI T
Compatible With	Minn Kota US2 Sonar, AIS, AutoPilot
Features	Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping
Memory Card Slot	Single Micro SD
Sonar-Standard	Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging
Sonar-Coverage	20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional	53 kHz, 50/Low Airmar CHIRP
Live Sonar-Coverage	20 degrees x 120 degrees
CHIRP - Frequencies Supported	Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported	50/83/200/455 kHz
Depth-Sonar	3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported	455 kHz (420-520 kHz)
Depth-Down Imaging	400 ft (455 kHz)
Range-Side Imaging (Side-To-Side)	800 ft (455 kHz)
Interface	Keypad Control
Power Draw	800 mA
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	4000 Watts
Power Output RMS	500 Watts
Screen Snap Shot	Included
Sonar Recording	Included
Mount-Standard	Gimbal
Mount-Standard Size	10.54 in W x 5.8 in H x 3.68 in D
Mount-Optional	In-Dash Mounting Kit
Mount-Optional Size	10.54 in W x 5.44 in H x 1.13 in D
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Receiver	Internal
GPS Trackplotting	Included
Waypoints, Routes, Tracks/Points	2,750, 45, 50/20,000
360 Imaging Compatibility	No
MEGA Live Compatibility	No
Humminbird Basemap	Included
LakeMaster Compatibility	Yes
CoastMaster Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum+ Compatibility	Yes
Platinum Compatibility	Yes
Minn Kota i-Pilot Link Compatibility	No
Minn Kota Talon Shallow Water Anchor Compatibility	No
Radar Compatibility	No
5-Port Ethernet Switch Compatibility	No
AIS Compatibility	Optional
Autopilot Compatibility	Yes
Heading Sensor GPS Compatibility	Yes
NMEA2000	Not Supported
Target Separation	2.5 in
Interference Rejection	6 Modes
Noise Rejection	10 Steps
Upgradable Software	Yes
View Preset Keys	No
X-Press Menu System	Yes
Custom Digital Readout	Yes
Custom View Selections	No
Display Colors Grayscale	16-Bit
Display Type	Color TFT
Speed	Included
Temperature	Built In
Temperature Alarm	Yes
Temperature Graph	Yes
HDMI Compatible	No
Warranty	One-Year Warranty
