Patriot LiveFix 360 Transducer Mount

Patriot® LiveFix 360 is a sturdy aluminum-made transducer mount designed for live sonar applications. Thanks to its highly versatile adjustment and mounting options, the Patriot® LiveFix is suitable for installation in almost all types of boats.

The Patriot® LiveFix 360 transducer mount can be mounted either on a railing, bolted directly to a flat surface, or attached to a mounting rail on the inside of the boat's gunwale (rail mount is an optional accessory). The adjustable slots in the mounting table allow for the optimal placement and distance adjustment for different boat models. With sufficient adjustments, the Patriot® LiveFix is also suitable for installation on wider-hulled boats, such as those from Buster, Silver, and Faster.

The versatility and adaptability of the Patriot® LiveFix 360 transducer mount enable its installation on both smaller and slightly larger boats. The transducer tube is made from aluminum, making it very easy to work with and, if necessary, shorten to the perfect length for smaller boats. As standard, the transducer tube is long enough (150cm) to reach below the baseline even in larger and higher-sided boats. The height of the transducer tube is easily adjustable by raising it slightly, allowing for easy transition from casting to fishing position without reaching.

The carefully considered features and details of the Patriot® LiveFix 360 transducer mount make its use straightforward. When lowered to the bottom position, the sensor tube locks into its supported groove and a light tightening of the locking crank suffices. In the bottom position, the tube remains stable in the groove without twisting or leveraging, ensuring the mount always stays in the correct position. In sonar mode, the rotational resistance of the transducer mount can be finely adjusted using an adjusting nut at the top. A sufficiently long and noticeable indicator handle helps easily track the direction of the sensor from a distance. When raising the sensor holder to the transport position, it locks firmly in a horizontal position against the mounting table, after which a light tightening of the locking crank suffices. The transducer tube can be completely removed from the mounting table for storage and transport, leaving no other parts attached to the boat. The transducer mount can also be turned inward towards the boat's sides for protection, for example, during trailering.

Patriot® LiveFix 360 is designed to work with, among others, Lowrance Active Target, Garmin Panoptix Livescope, and Humminbird Mega Live sensors.

• Sturdy and lightweight aluminum construction
• Versatile adjustment and mounting options

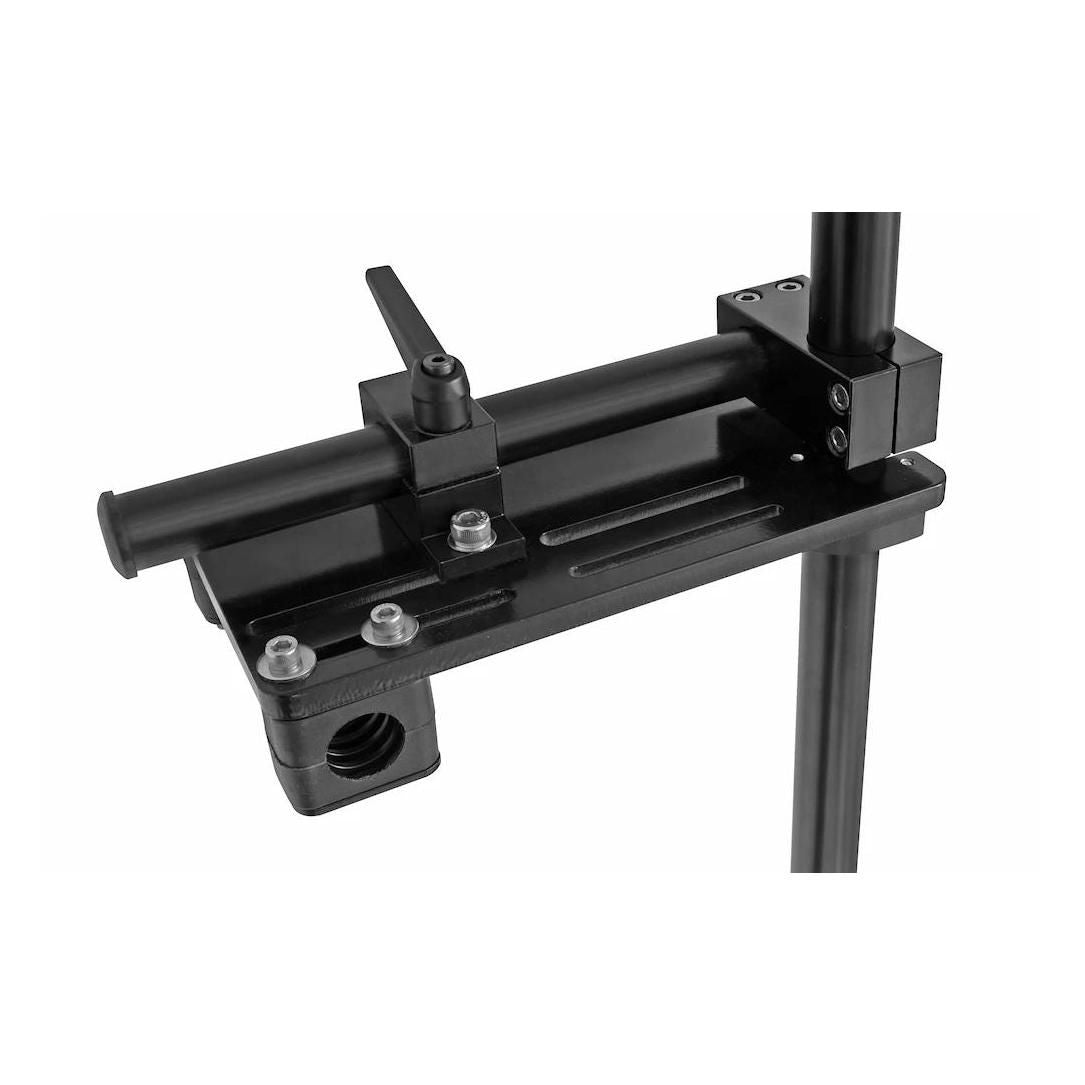

• Robust 10mm thick aluminum mounting table with adjustment slots

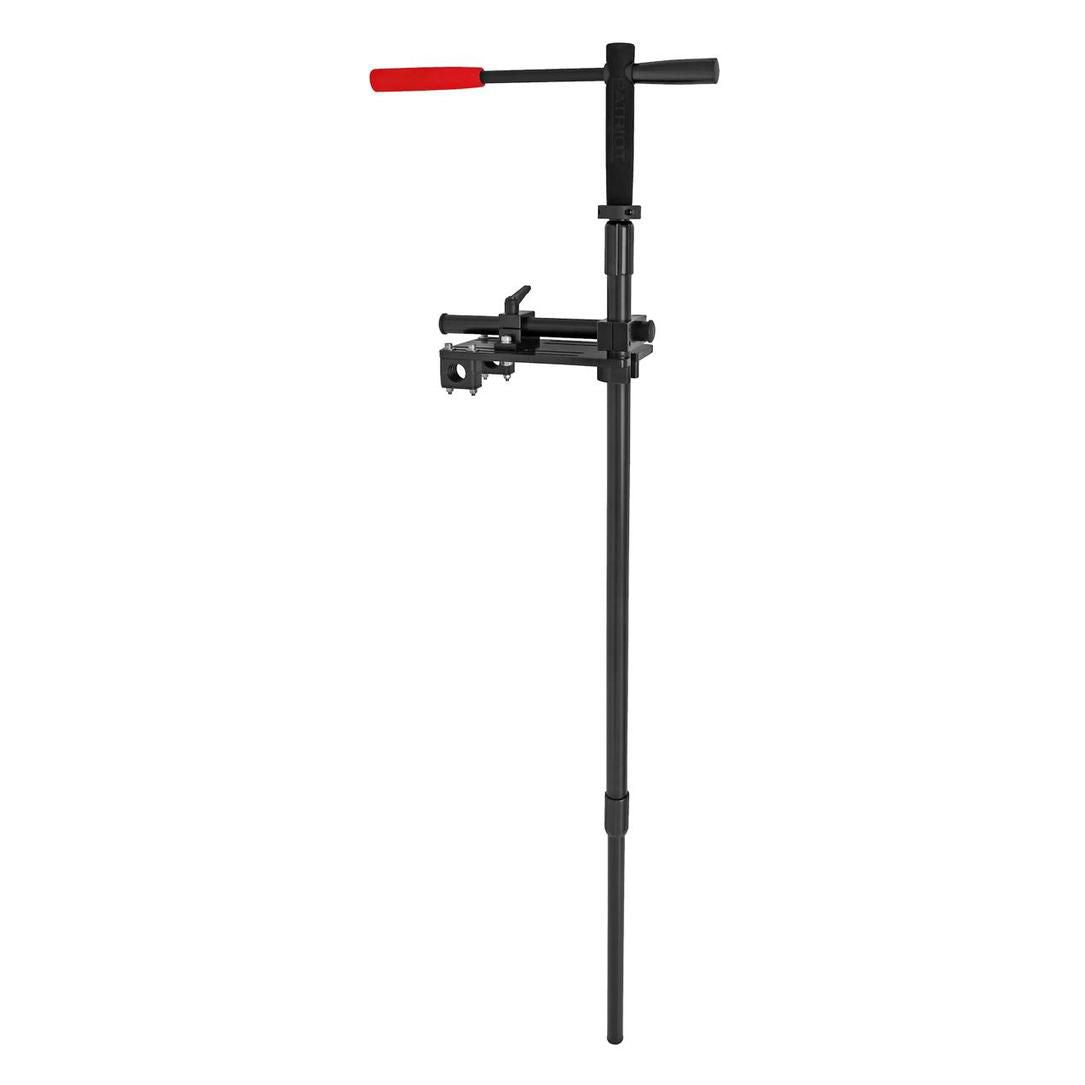

• In the bottom position, the transducer tube locks into a supported groove and always remains in the correct position

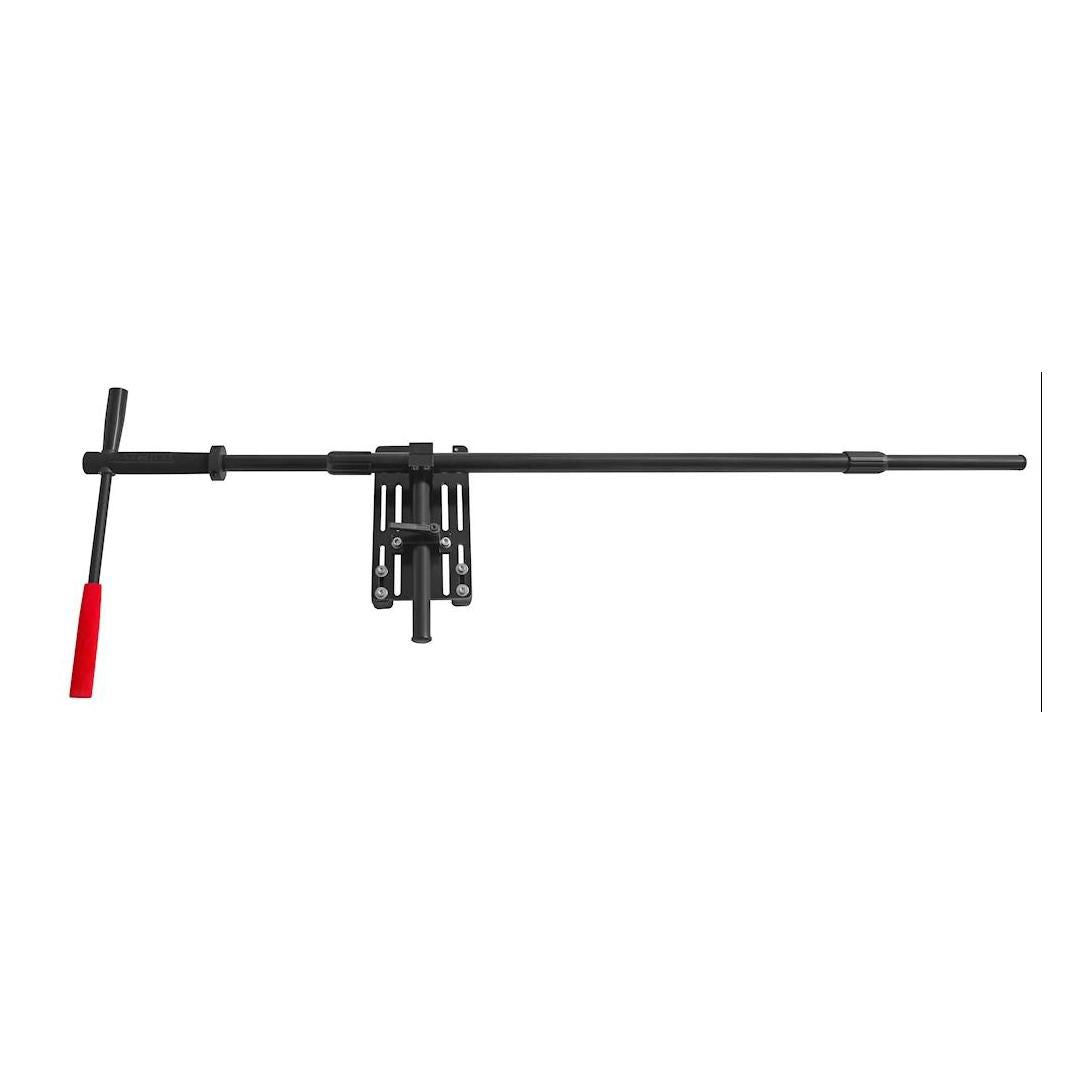

• In the top position, the transducer tube locks firmly in a horizontal position against the mounting table
• Quick-use locking crank for fast and easy use
• Can be mounted on a railing, flat surface, or rail (rail mount is an optional accessory)
• Includes mounting accessories for railing installation (25mm / 1” tube)
• Removable indicator handle

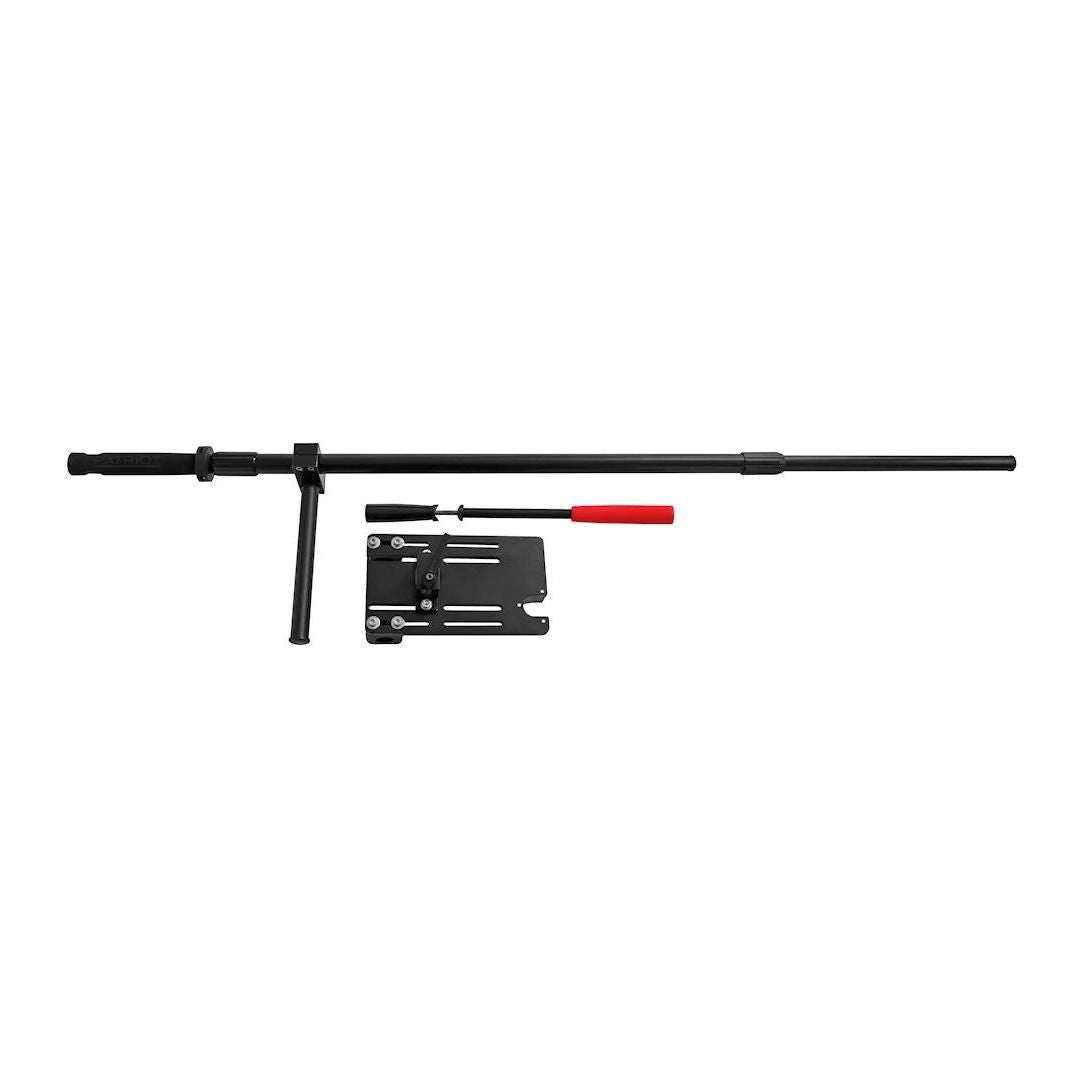

• Transducer tube removable, leaving only the mounting table on the boat
• Transducer mount can be turned inward towards the boat's sides for protection, e.g., during trailering
• Continuously adjustable height
• Continuously adjustable rotational resistance
• Total length of the transducer tube 150cm
• Transducer tube designed to be shortened to the appropriate length for specific boats
• Tube diameter 25mm / 1”
• Inner tube structure allows for cable attachment to the outer tube
• Bolts and mounting accessories made of stainless steel
• Suitable for installation on almost all types of boats
• Designed to be used with, among others, Lowrance Active Target, Garmin Panoptix Livescope, and Humminbird Mega Live sensors
