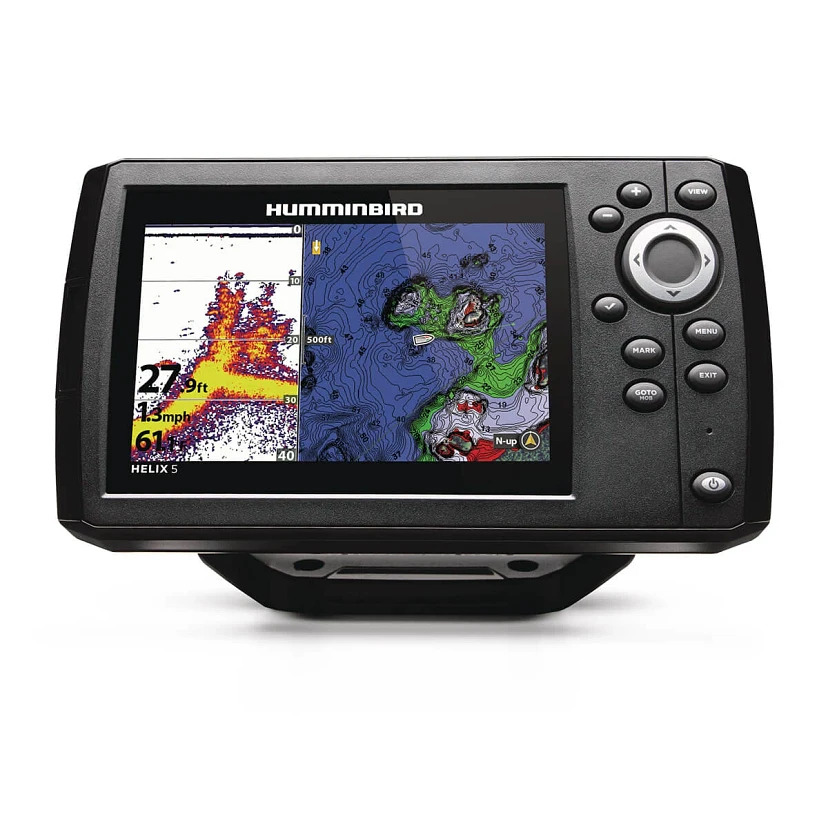

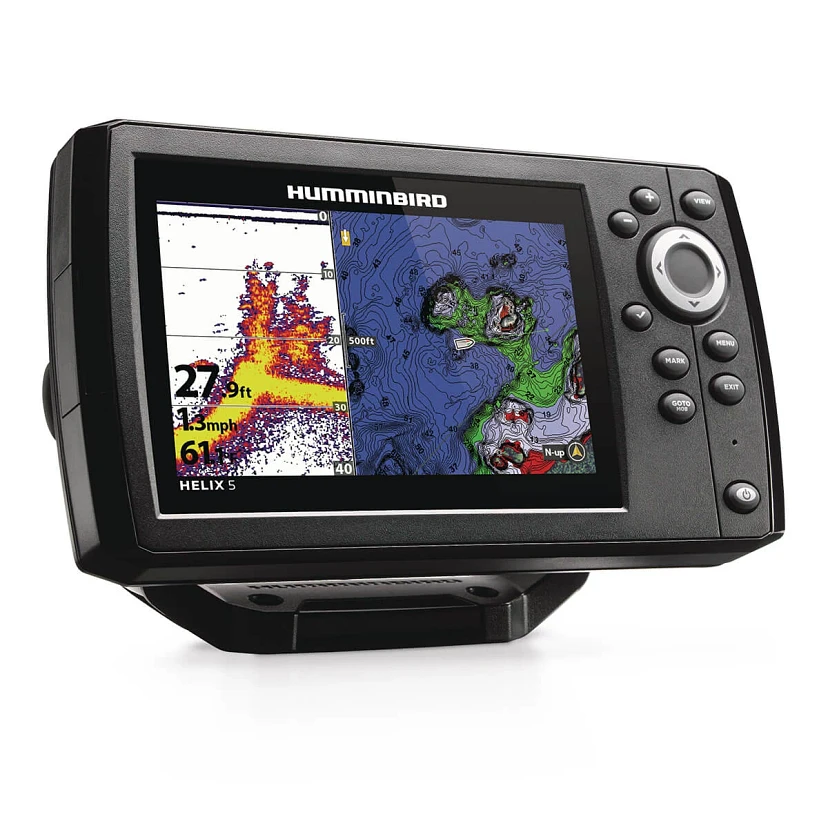

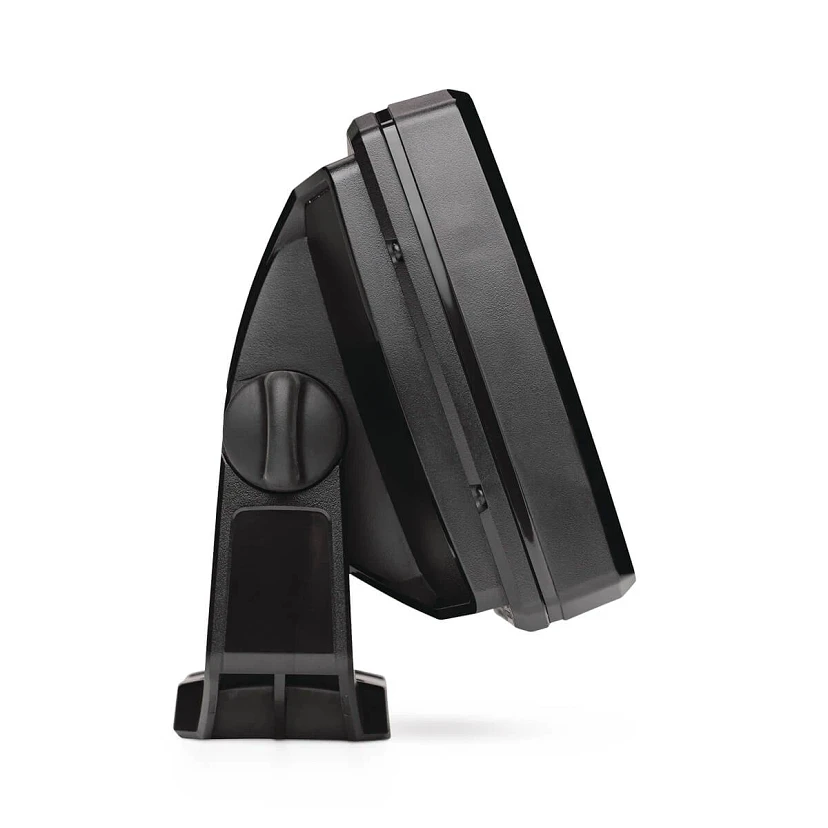

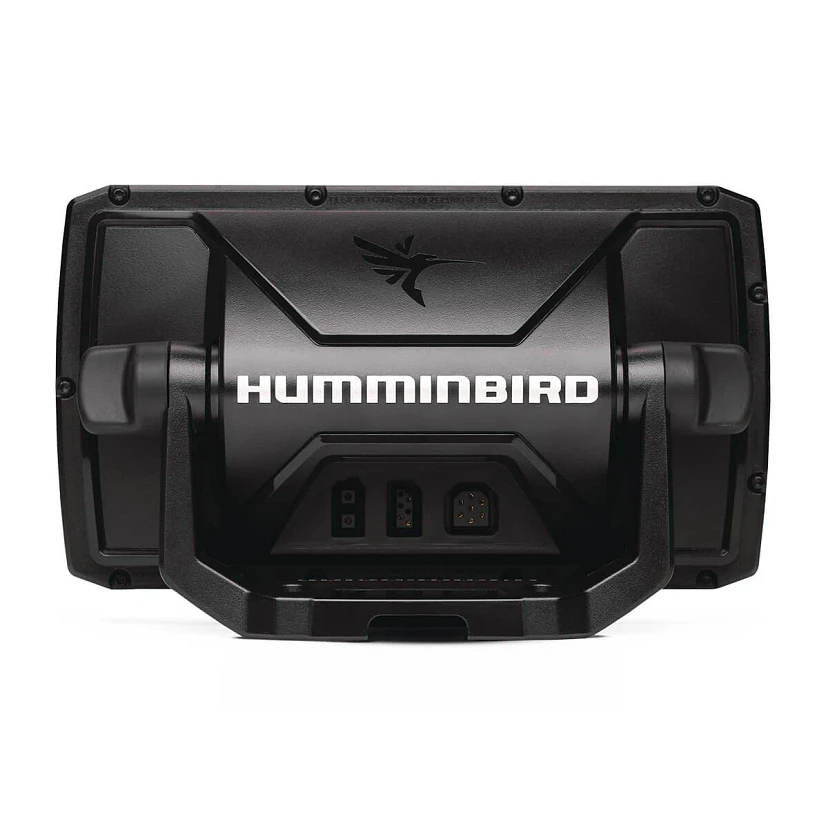

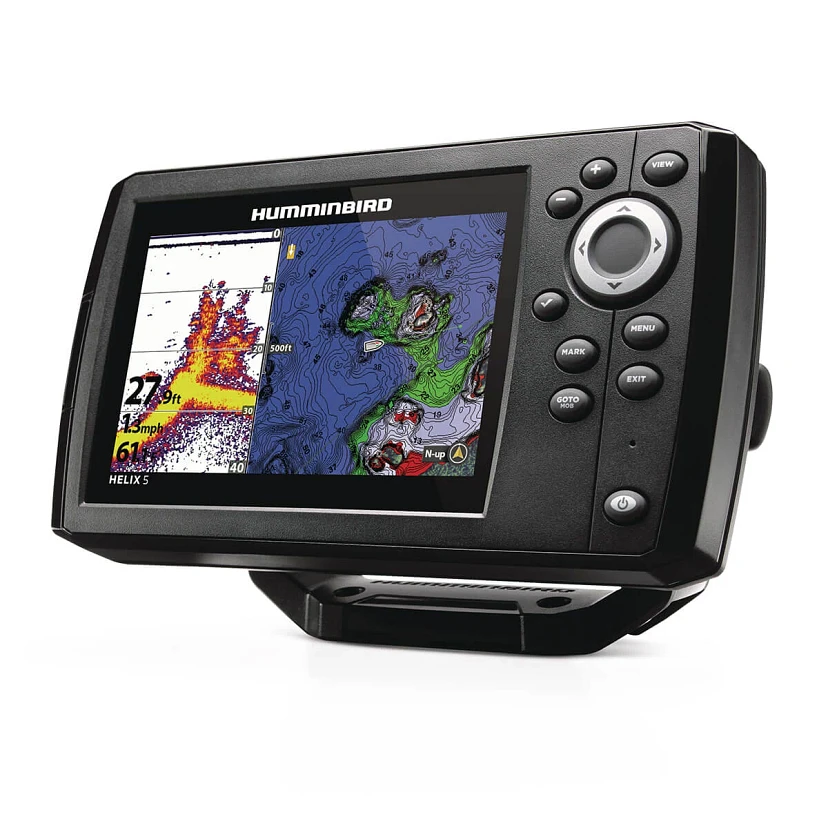

HELIX 5 CHIRP GPS G3
This HELIX 5 CHIRP GPS G3 model boasts an unyielding 5" widescreen, color display and offers Dual Spectrum CHIRP 2D sonar, internal GPS, Humminbird Basemap, and AutoChart Live. The HELIX 5 CHIRP...
SKU:
411660-1
- €395.00
- €395.00
- Vienības cena
- uz
This HELIX 5 CHIRP GPS G3 model boasts an unyielding 5" widescreen, color display and offers Dual Spectrum CHIRP 2D sonar, internal GPS, Humminbird Basemap, and AutoChart Live. The HELIX 5 CHIRP GPS G3 compatible with premium fishing charts from Humminbird and Navionics, the HELIX 5 Series is the perfect companion for any avid angler. Whether it's an early morning or a remote location, this device will not disappoint.
Master HELIX with the touch of a button. Easily access pre-loaded views with a user-friendly menu and reliable softkey controls. Dual Spectrum CHIRP sonar provides detailed fish arches and a clear view of fish and structures. Powered by Low-Q CHIRP transducer, it offers wide and narrow search modes.
Enhanced base map for clear underwater terrain and precise navigation. Premium chart options available from Humminbird and Navionics.
Create real-time fishing maps with HELIX 5 CHIRP GPS G3. Map depth contours, bottom hardness, and vegetation as you drive your boat. It comes with eight (8) hours of recording time and is compatible with AutoChart Zero Line SD cards for endless mapping. Includes control head, transducer, power cable, and mounting hardware. 1-year warranty.
| Model | HELIX 5 CHIRP GPS G3 |
| Product Code | 411660-1 |
| Series | HELIX |
| UPC | 0082324056291 |
| Display Size - Diagonal | 5 in |
| Display Pixel Matrix | 800H x 480V |
| Transducer Included | XNT 9 HW T |
| Compatible With | Minn Kota US2 Sonar, AIS, AutoPilot |
| Features | Built In GPS, Dual Spectrum CHIRP, Built In Mapping |
| Memory Card Slot | Single Micro SD |
| Sonar-Standard | Dual Spectrum CHIRP |
| Sonar-Coverage | 20°, 42° & 60° @ -10dB |
| Sonar-Optional | 50/83/200 kHz |
| CHIRP - Frequencies Supported | Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz) |
| Sonar-Frequencies Supported | 50/80/200 kHz & HW DSC CHIRP |
| Depth-Sonar | 3,000 ft (optional 50 kHz), 1,200 ft (standard transducer) |
| Interface | Keypad Control |
| Power Draw | 615 mA |
| Power Input | 10.8-20 VDC |
| Power Output Peak-to-Peak | 4000 Watts |
| Power Output RMS | 500 Watts |
| Screen Snap Shot | Included |
| Sonar Recording | Included |
| Mount-Standard | Gimbal |
| Mount-Standard Size | 7.55 in W x 4.64 in H x 3.3 in D |
| Mount-Optional | In-Dash Mounting Kit |
| Mount-Optional Size | 7.55 in W x 4.28 in H x 1.13 in D |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Receiver | Internal |
| GPS Trackplotting | Included |
| Waypoints, Routes, Tracks/Points | 2,750, 45, 50/20,000 |
| 360 Imaging Compatibility | No |
| MEGA Live Compatibility | No |
| Humminbird Basemap | Included |
| LakeMaster Compatibility | Yes |
| CoastMaster Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum+ Compatibility | Yes |
| Platinum Compatibility | Yes |
| Minn Kota i-Pilot Link Compatibility | No |
| Minn Kota Talon Shallow Water Anchor Compatibility | No |
| Radar Compatibility | No |
| 5-Port Ethernet Switch Compatibility | No |
| AIS Compatibility | Not Supported |
| Autopilot Compatibility | No |
| Heading Sensor GPS Compatibility | No |
| NMEA2000 | Not Supported |
| Target Separation | 2.5 in |
| Upgradable Software | Yes |
| View Preset Keys | No |
| X-Press Menu System | Yes |
| Custom Digital Readout | Yes |
| Custom View Selections | No |
| Display Colors Grayscale | 16-Bit |
| Display Type | Color TFT |
| Speed | Included |
| Temperature | Built In |
| Temperature Alarm | Yes |
| Temperature Graph | Yes |
| HDMI Compatible | No |
| Warranty | One-Year Warranty |
